Choosing Between Interior and Exterior Radon Pipe Routing
Homeowners often view radon mitigation as a purely functional utility, but the routing of the vent pipe determines how the system interacts with the home’s architecture and the local climate. While the goal remains the same—drawing radon gas from beneath the foundation and venting it safely above the roofline—the physical path of the pipe significantly impacts the system’s lifespan. In the metro area, where architectural styles range from mid-century ranches to modern multi-story builds, there is no one-size-fits-all solution for pipe placement.

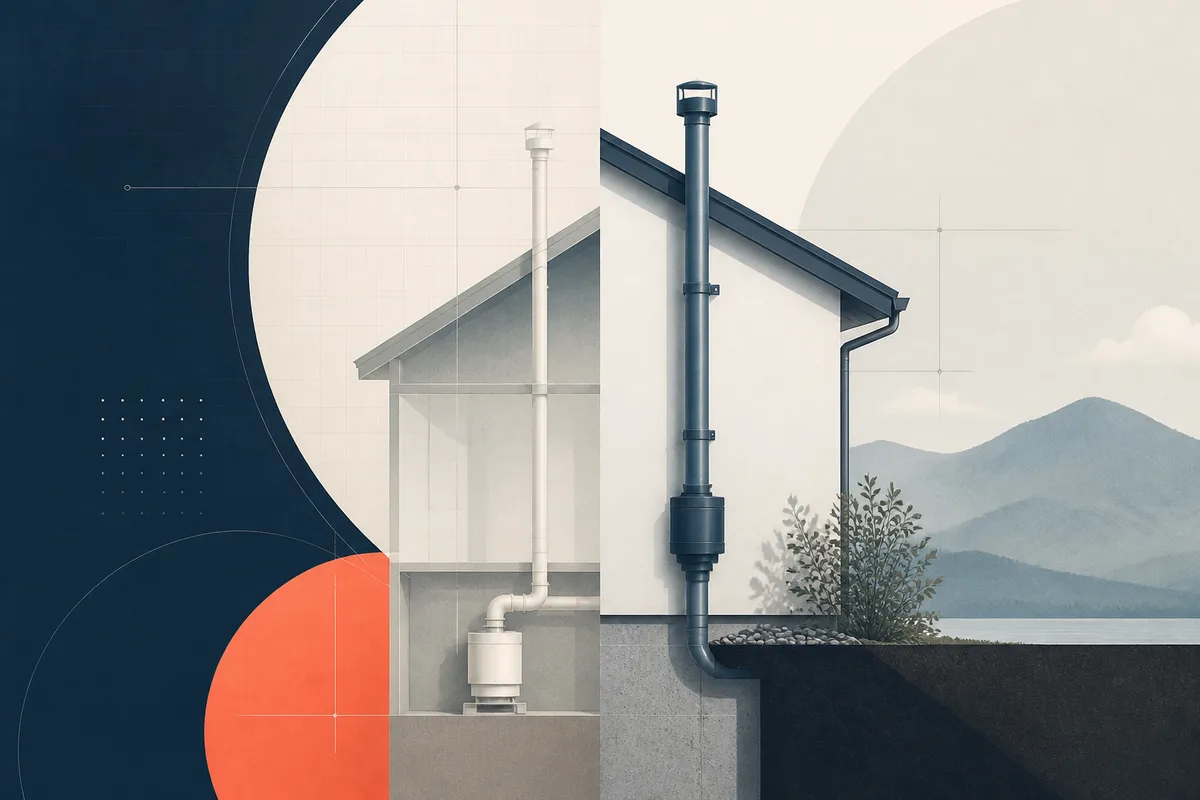

This guide compares the two primary radon pipe installation options: interior routing through closets or garages and exterior routing along the home's siding. By understanding the mechanical implications of these paths, property owners can make an informed decision that balances aesthetics with the realities of the high-altitude environment.
Why Poor Routing Design Leads to System Failure
A radon system is a simple pressure-differential machine, but it fails when environmental factors interfere with air movement or electrical components. Selecting the wrong route often results in one of several avoidable issues:
- Liquid water from condensation or rain can pool in low spots of the pipe if not properly pitched, eventually "gurgling" or blocking airflow entirely.
- In the local region, the National Weather Service records extreme temperature swings that can impact the longevity of exterior mechanical components.
- Exterior pipes are subject to frost or ice blockages during prolonged cold snaps, which temporarily disables the system’s ability to vent gas.
- Interior routing through an unheated attic requires specific insulation to prevent the warm, moist air from the soil from condensing and freezing inside the pipe.
The Playbook for Selecting a Routing Path
Deciding where the pipe should go requires an audit of the home’s vertical clear paths and the owner's tolerance for visible infrastructure. A standard radon mitigation system must follow specific mechanical logic regardless of the path chosen.
1Evaluate the Vertical "Chase"
The most efficient interior route utilizes a series of stacked closets or a utility chase to move the pipe from the basement to the attic. This keeps the pipe entirely hidden within the home’s thermal envelope. If a clear vertical path does not exist without major structural modification, an exterior route becomes the more pragmatic choice.
2Account for Thermal Protection
According to EPA guidance, the fan should be located in a non-habitable space like an attic or outside the building to ensure that any leaks in the pressurized side of the system do not vent back into the home. Interior routing keeps the fan in the attic, where it is shielded from the direct elements.
3Minimize Aesthetic Impact
Exterior routing involves a vent pipe running up the side of the house, often terminated with a fan housing and a vent stack above the eave. While the pipe can be painted to match the siding, it remains a visible mechanical feature. Interior systems are invisible from the street, with only a small vent pipe protruding from the roof, similar to a standard plumbing stack.
4Assess Long-term Maintenance Requirements
Exterior systems are easier to access if a fan requires replacement, but they are also more prone to radon system repair needs due to weather exposure. Interior systems, while more complex to install initially, typically offer a quieter operation because the fan is buffered by the attic space and insulation rather than being bolted to an exterior wall.
The Impact of Condensation and Climate
In high-altitude environments, the temperature difference between the soil beneath the slab and the outside air can be significant during winter. This creates condensation inside the pipe. A properly installed system must be designed so that all moisture drains back down the pipe and into the soil.
If an exterior pipe is used, the moisture is exposed to sub-freezing temperatures. This can lead to ice buildup that narrows the pipe, forcing the fan to work against higher resistance and reducing the overall radon vacuum. Interior systems mitigate this by keeping the majority of the pipe run within the walls of the house, only exposing the final section to the elements.
How Denver Radon Services Helps
A standard mitigation project begins with a review of the home’s layout to identify the most efficient path for sub-slab depressurization. This includes checking for a sump pit or existing drain tile that can be leveraged for suction. For residents in the area, the process involves selecting high-grade piping and ensuring the fan is sized correctly for the specific soil density found in the region. Whether the goal is to facilitate a real estate transaction or improve long-term air quality, a professional scope of work will always include radon testing post-installation to verify the chosen routing is effectively reducing levels.
Frequently asked questions
Does an exterior radon fan make a lot of noise?
Most modern radon fans are designed for quiet operation, but an exterior fan is attached directly to the home's siding. This can sometimes create a low-frequency vibration that is audible through the wall. If a fan is located near a bedroom window, interior routing to the attic is usually the better choice for sound dampening.
Can I hide the exterior pipe inside a decorative downspout?
Some homeowners choose to use rectangular downspout-style piping for the exterior run to blend in with the gutters. While aesthetically pleasing, these transitions must be perfectly sealed to prevent leaks. Standard round pipe is generally preferred for its durability and better airflow characteristics.
Will an interior radon pipe take up a lot of closet space?
A standard radon vent pipe requires a small amount of space in a closet. When routed through a closet, it is typically tucked into a back corner. Most homeowners find that the loss of a small amount of shelf space is a fair trade for keeping the system invisible from the exterior and protecting the fan from the weather.
How does the climate affect fan life?
In areas like Lakewood, the intense UV rays at high altitude can make unpainted plastics brittle over time. Furthermore, the Colorado Climate Center notes significant temperature variability, which can cause exterior components to expand and contract, potentially leading to seal failures that wouldn't occur in a protected attic environment.
Is one installation option cheaper than the other?
Exterior installations are generally less expensive because they require less labor and fewer interior wall penetrations. Interior routing requires more time to navigate through the home’s framing and may involve additional costs for drywall repair or painting if the pipe is boxed in.
Are there resources to check my radon levels before I commit to a system?
When you are ready to test your home, you should contact your state radon office for information on locating qualified testers or obtaining kits. According to the Consumer's Guide to Radon Reduction, residents can find state-specific information at http://sosradon.org/ to determine if a mitigation system is necessary.
